ARC Metrology now offer a range of CMM Validation Artefacts to ensure your equipment is performing at its optimal level.

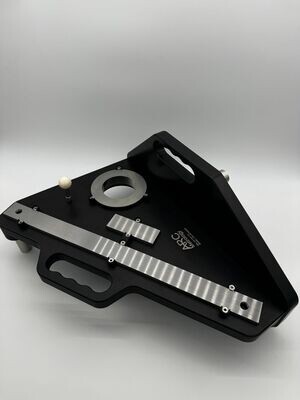

The CMM Verification Artefact gives confidence in the accuracy of your CMM between annual calibrations by enabling you to independently verify your CMM accuracy. The Artefact includes UKAS certified calibrated length bars, ring gauge, ceramic sphere and is supplied with a one measurement program for in either Calypso, MCOSMOS, CAMIO, PC Dmis or MODUS
Designed to be used between annual calibrations to highlight any issues with the machine's performance. An Artifact is designed to check singular or multiple axis to help you maintain the highest standards.
Includes
100mm Length Bar
500mm Length Bar
75mm Internal Ring Gauge
25mm Ceramic Sphere
UKAS Certificates
Carry Case
Specification
Large
Length Bars
L 500mm
Size U = ±0.9 μm
L 100mm
Size U = ±0.9 μm
Sphere
D 25mm
Size U = ±0.8 μm
Form U = ±0.1 μm
Ring Gauge
D 75mm
Size U = ±1.5 μm
Form U = ±1.5 μm
LEAD TIME 2-4 WEEKS to allow for UKAS Calibration
