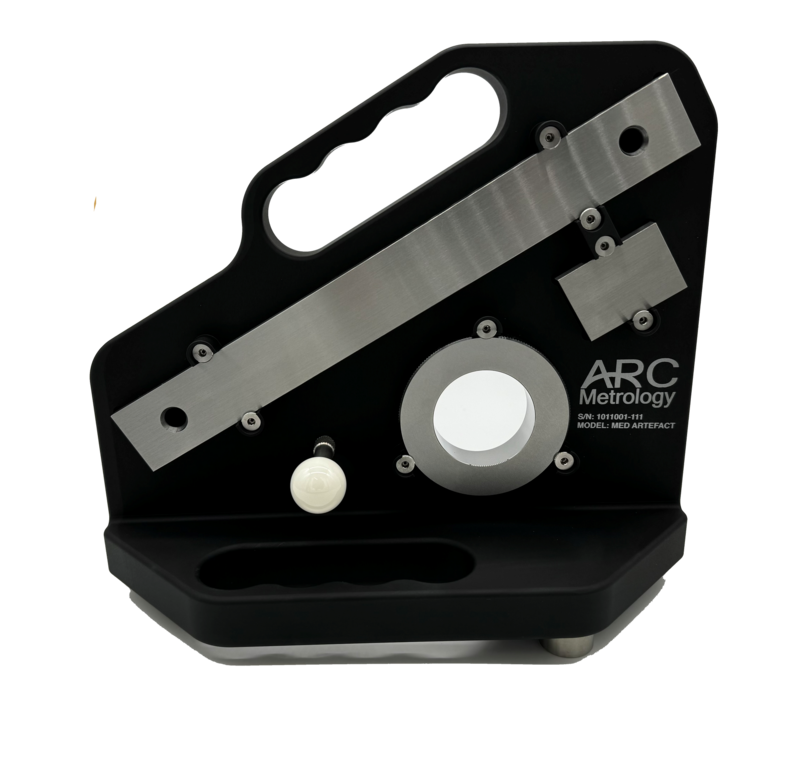

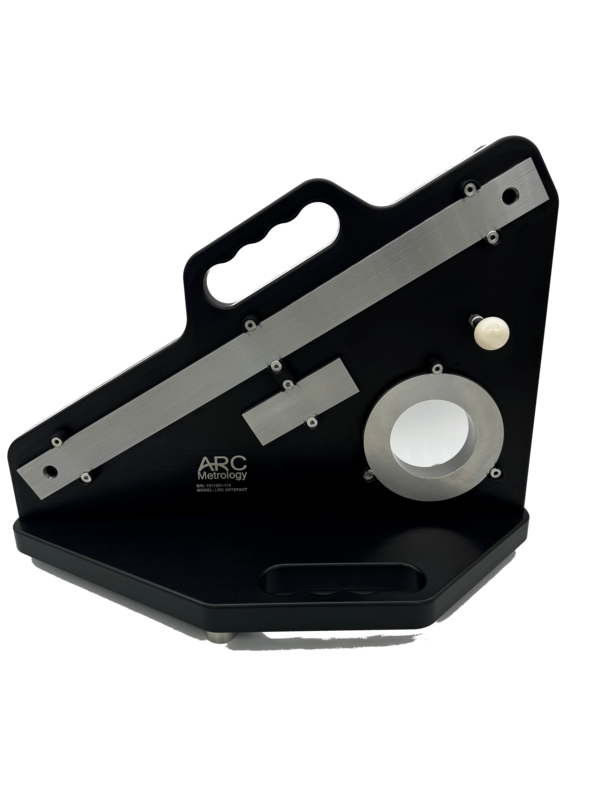

CMM Verification Artefacts
ARC Metrology now offer a range of CMM Validation Artefacts to ensure your equipment is performing at its optimal level.
When used at regular intervals between annual service and calibration, the artefacts will enable you to quickly detect any change in machine performance. They enable you to independently verify your CMM accuracy by measuring UKAS certified calibrated length bars, a ring gauge and a ceramic sphere using a program supplied by our team of engineers. These are available for MCOSMOS, Calypso, PC-DMIS, CAMIO, Modus, Polyworks or Aberlink 3D.
All artefacts are supplied in a heavy-duty waterproof case to protect it from accidental damage when not in use.

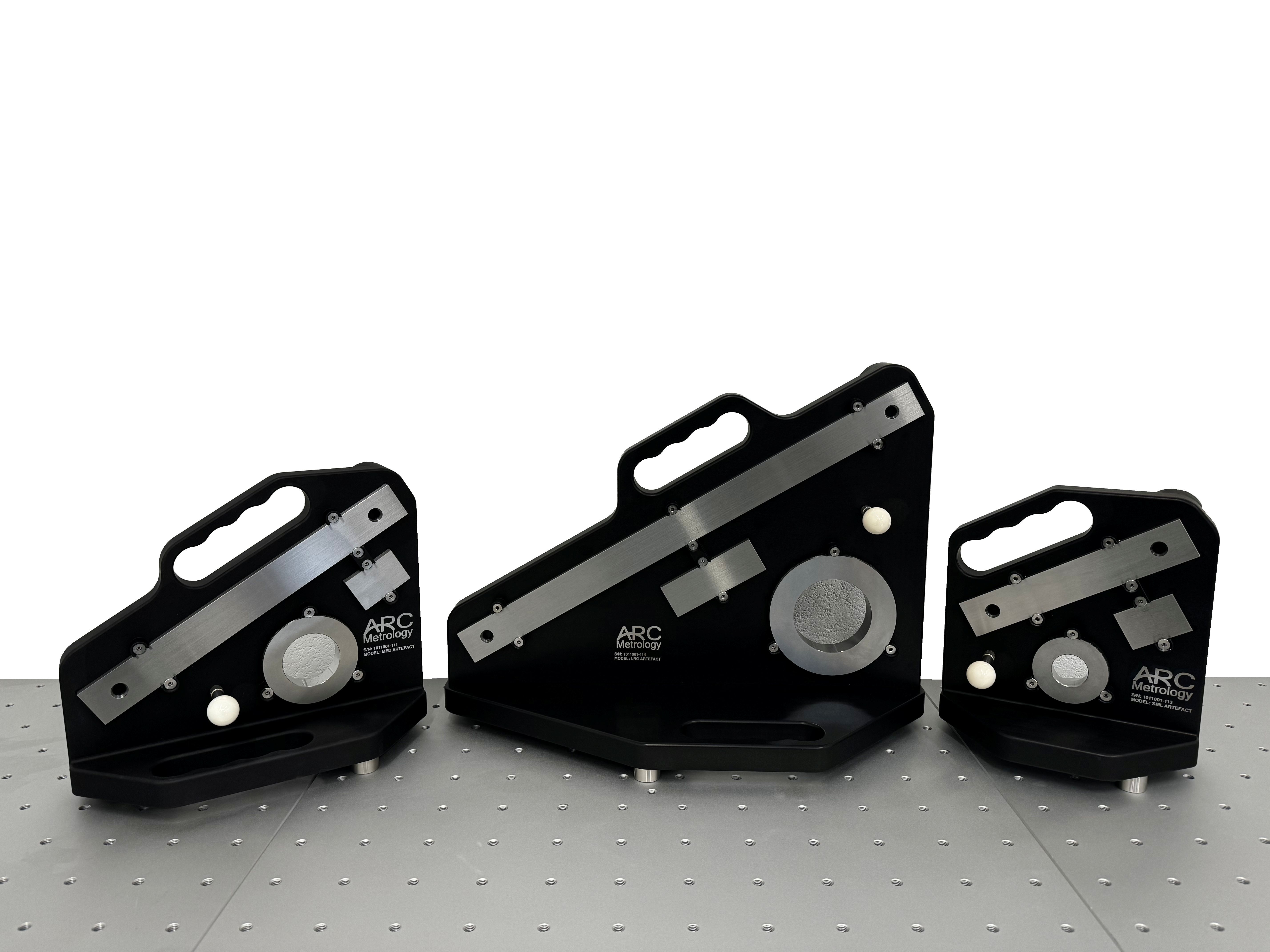

| Large | Standard | Mini | ||||
| Length Bars | L 500mm | Size U = ±0.9 μm | L 300mm | Size U = ±0.9 μm | L 200mm | Size U = ±0.9 μm |
| L 100mm | Size U = ±0.9 μm | L 50mm | Size U = ±0.9 μm | L 50mm | Size U = ±0.9 μm | |
| Sphere | D 25mm | Size U = ±0.8 μm | D 25mm | Size U = ±0.8 μm | D 25mm | Size U = ±0.8 μm |
| Form U = ±0.1 μm | Form U = ±0.1 μm | Form U = ±0.1 μm | ||||
| Ring Gauge | D 75mm | Size U = ±1.5 μm | D 50mm | Size U = ±1.5 μm | D 30mm | Size U = ±1.5 μm |
| Form U = ±1.5 μm | Form U = ±1.5 μm | Form U = ±1.5 μm | ||||
